  • Air-cooled integrated unit

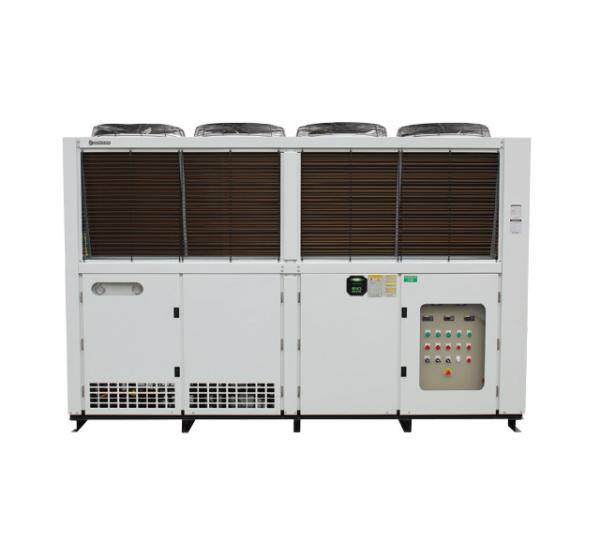

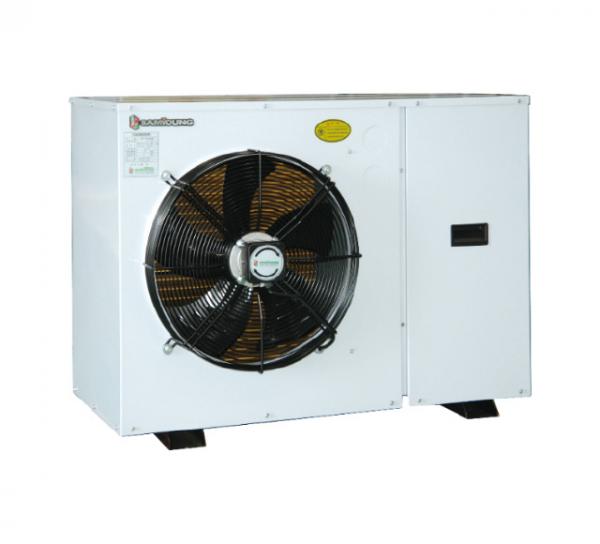

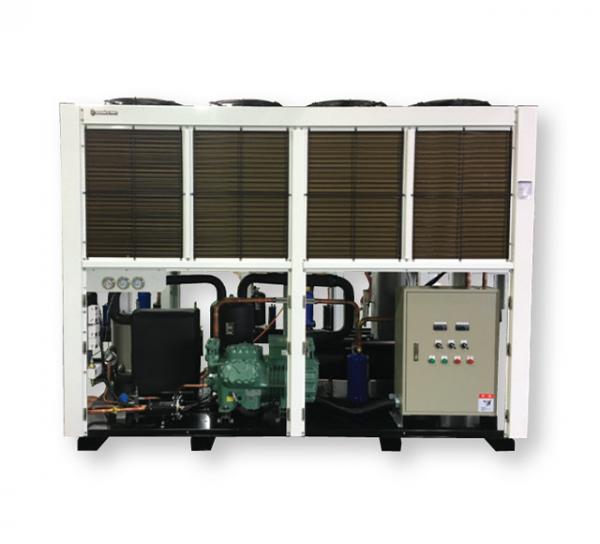

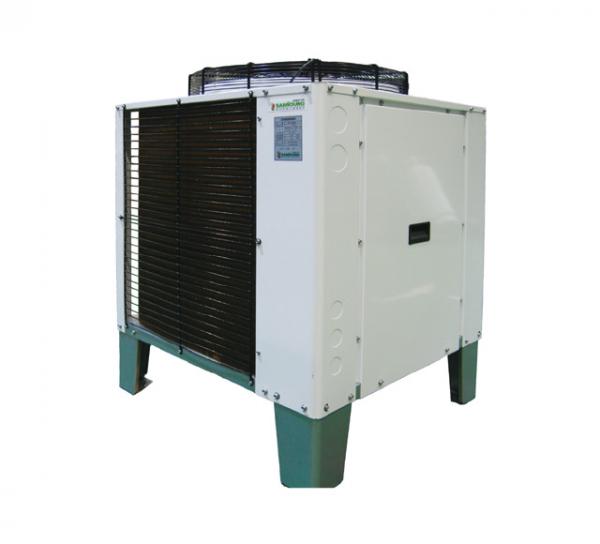

Air-cooled packaged unit

  • Product Features
    A refrigeration unit with the compressor, condenser, and control panel integrated into a single frame.
  • Capacity range
    Small to medium capacity range (5 HP to 50 HP class).
  • Application field
    Small- to medium-sized cold storage warehouses, food storage, and standalone refrigeration/freezing systems.
  • Compressor
    Equipped with BITZER reciprocating and scroll compressors (exclusive partner).

Features

Features

Ease of installation and reliability



  • Space-saving installation: All key components are integrated, eliminating the need for a separate machine room and enabling efficient use of outdoor space.
  • Fast installation: Ready for operation with only on-site piping and power connections, reducing installation time and cost.
  • Reliable compressor performance: Ensures durability and long-term operational stability with compressors from BITZER, supplied through a 40-year exclusive partnership.
  • System optimization: Achieves optimized performance among unit components based on extensive experience in refrigeration system design.
